Conservatory Roof Installation

The installation process

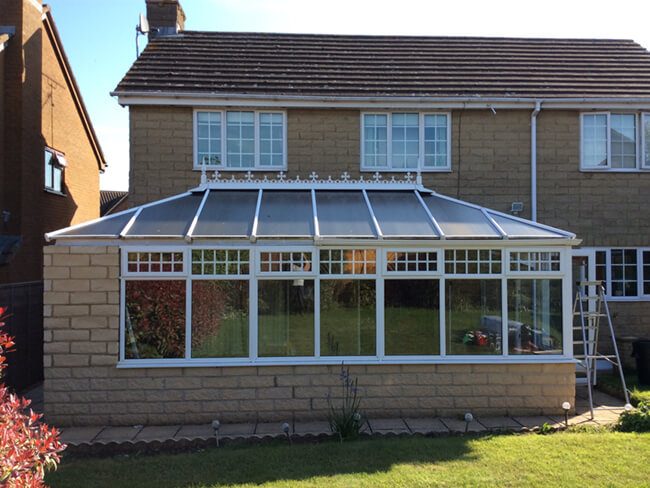

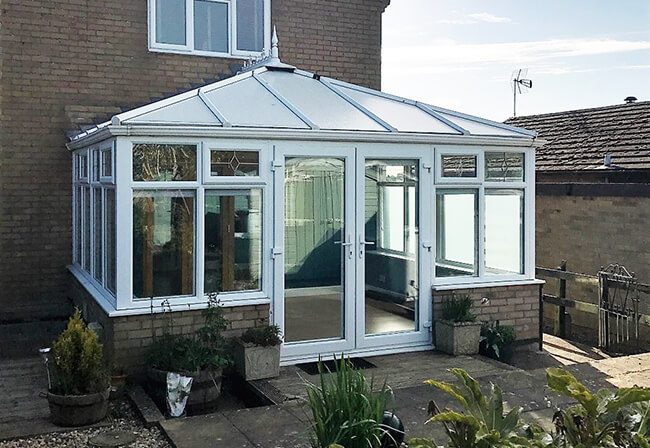

Number 1Removal of the existing conservatory roof

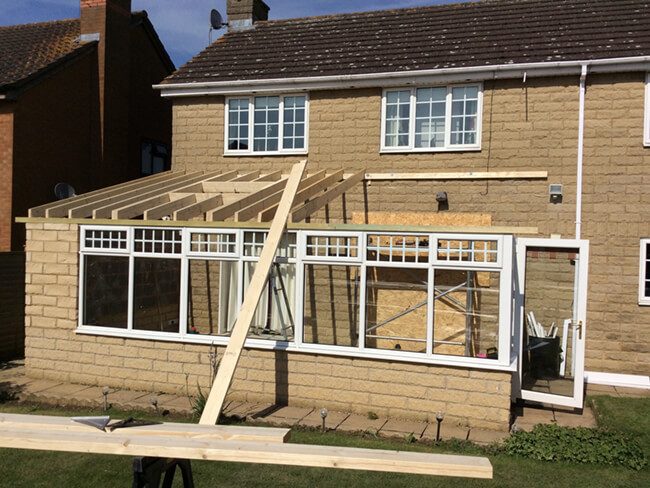

Number 1Installation of a new bespoke timber roof structure using treated timber
Number 1Alumaflex thermal multi-foil insulation quilting is placed over the new timber rafters

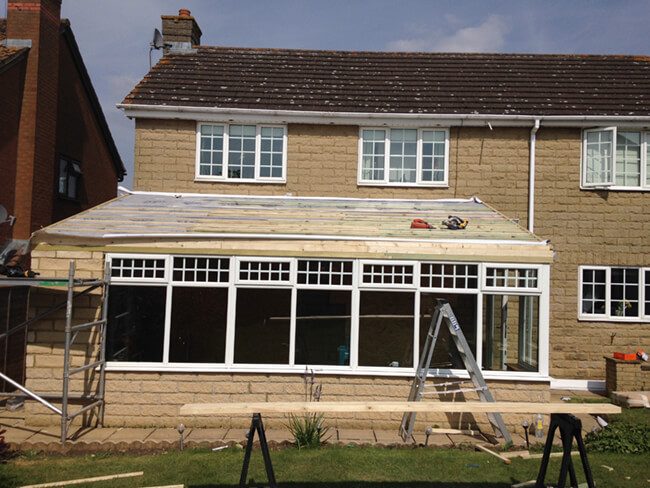

Number 1Treated timber battens are fitted over the Alumaflex insulation quilting
Number 1A layer of breathable membrane roofing felt is then installed
Number 1Tiling battens are fitted over the felt

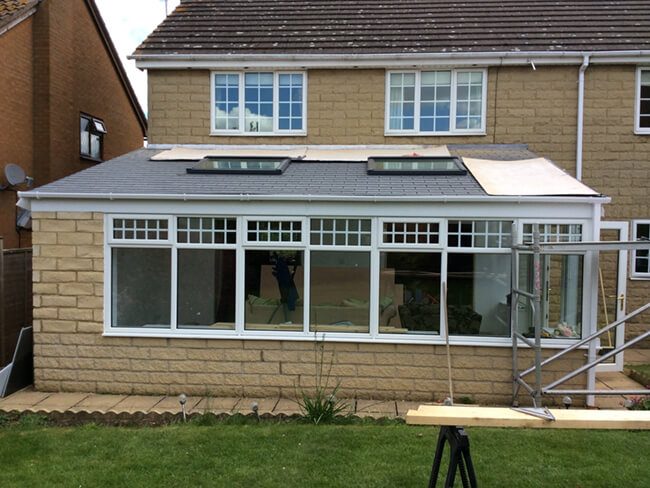

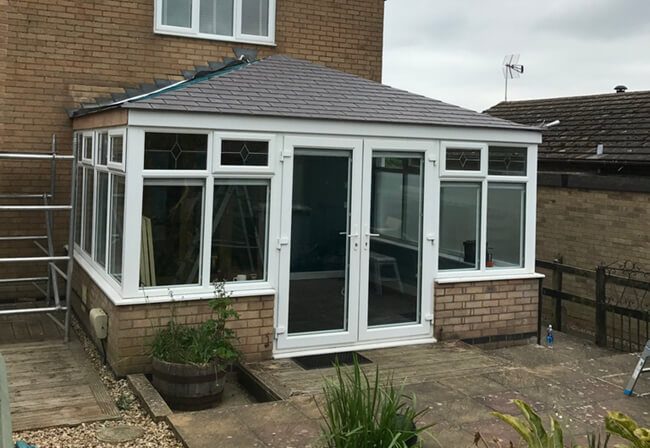

Number 1Lightweight tiles are then fixed to the tiling battens
Number 1Insulation boards are fixed between the rafters
Number 112.5mm thick plasterboard is fitted to the underside of the timbers and plastered
Number 1The conservatory is then fitted with all new facias, soffits and guttering
Tapco Logo

The modern, lightweight TapcoSlate tiles used in our roofs are authentically shaped with textured surfaces and riven edges moulded from authentic slates. This makes them almost indistinguishable from natural slate – yet it has an even more refined appearance. They do not crack, break or delaminate, and its product formulation and manufacturing processes provide durability, performance, and longevity for many years to come!

The tiles are available in a range of colours and styles with the most popular shown here, giving you the option to either colour match your homes existing roof or go for something entirely different.

Tapco warranty
Tapco Slate
1
2
3
4
5
6
7
8

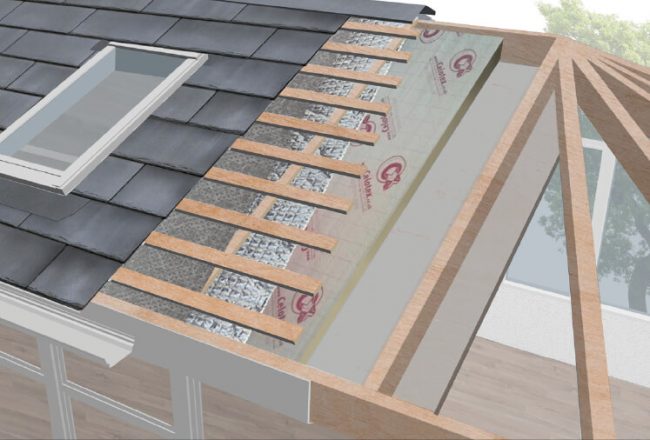

Conservatory roof tech 1
1

Tapco Lightweight Slate Tiles

2

Tanalised Roofing Battens

3

Breathable Roofing Membraine

4

Tanalised Timber Battens

5

Alumaflex Thermal Multifoil Insulation

6

Celotex (or equivalent) Insulation Board

7

Treated Timber Rafter under insulation board

8

12.5mm Plasterboard

Conservatory roof tech 2
Number 1Tapco Lightweight Slate Tiles
Number 1Tanalised Roofing Battens
Number 1Breathable Roofing Membraine
Number 1Tanalised Timber Battens
Number 1Alumaflex Thermal Multifoil Insulation
Number 1Celotex (or equivalent) Insulation Board
Number 1Treated Timber Rafter
Number 112.5mm Plasterboard

Alumaflex® is a thin and highly efficient multi-foil insulation, designed to help reduce energy costs, save on space and meet the thermal requirements.

It helps improve air-tightness compared with other forms of insulation and is ideal for timber frame insulation. It is manufactured in the UK and is one of only two multi-foil products that carry BBA certification.

Alumaflex logo
Cure it BLACK logo

Unlike many other solid roof installers we are accredited by Cure-It, the UK’s leading GRP flat roofing system which enables us to create new rainwater gulley’s which eliminate the need for a box guttering, which are intrusive into the conservatory. This seamless system looks like a traditional lead gulley yet has all the benefits of a modern fibreglass system.

Cure It is a revolutionary GRP waterproofing system made with a specially formulated roofing resin and topcoat, designed by the UK’s leading GRP flat roofing materials manufacturer, supplied with a 20 year materials guarantee and certified with Local Authority Building Control Registered Detail.

Cure It has a proven pedigree as a high specification roofing system through a comprehensive range of test accreditations to BS and to ETAG (European Technical Approval Guidelines) standards and real-world long term specifications.

GRP gulley

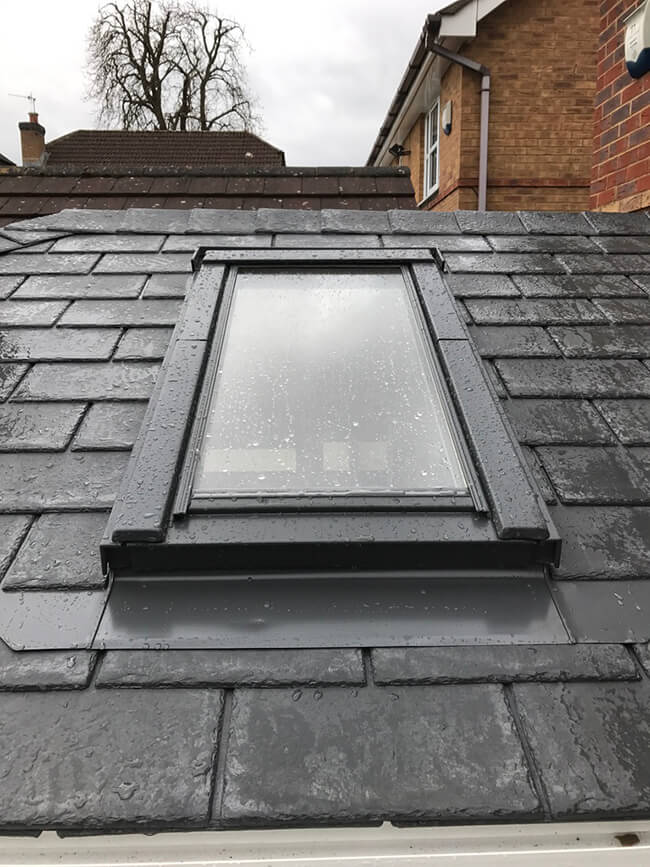

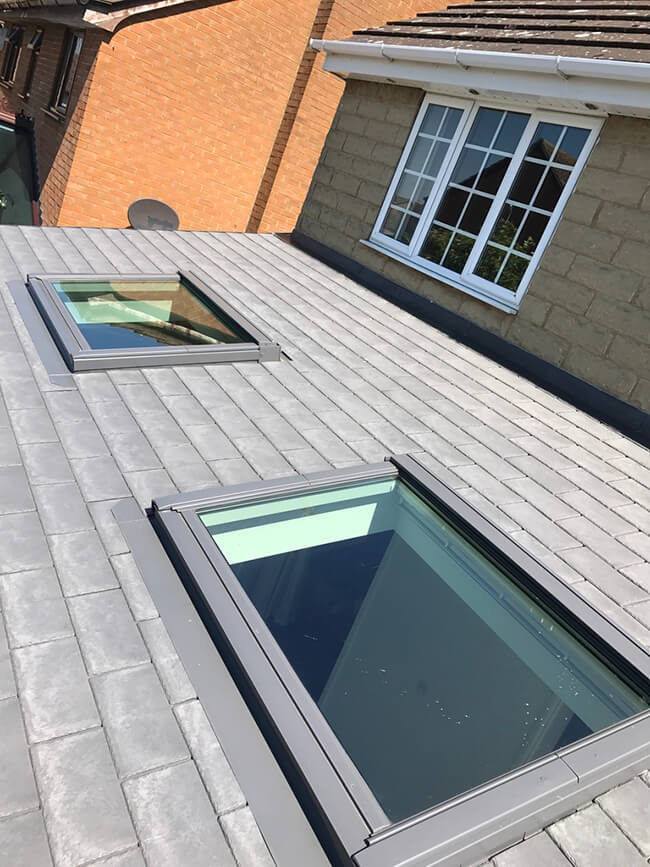

Velux logo
